Kukatj Gkuthaarn Coastal Tourist Village
A 12-cabin beachfront tourist accommodation concept for Kukatj Gkuthaarn Country, powered by the Barkly Rapid Deploy Housing System.
100% Solar Powered · Rainwater Harvesting · Zero Septic · Cyclone Resilient
Project Overview
This concept proposes a self-contained tourist stopover village on Kukatj Gkuthaarn Country, designed for travellers exploring remote coastal Queensland. The village comprises 12 Barkly modular cabins arranged to maximise ocean views while maintaining a low environmental footprint through off-grid solar power, rainwater harvesting, and composting toilets.
The accommodation model addresses an ongoing need for quality tourist infrastructure in remote coastal locations such as Mornington Island and Weipa, where conventional construction is prohibitively expensive and logistically challenging. The Barkly system enables rapid deployment with minimal site disturbance, and all cabins are engineered for cyclone resilience.
12
Cabins Total
6 × 2-Bed + 6 × Studio
100%
Solar Powered
Off-grid energy system
Zero
Septic Systems
Composting toilets
600mm
Above Ground
Mega Anchor footings
Accommodation Types
2-Bedroom Tourist Unit
The 2-bedroom unit is composed of three Barkly 3×6m modules: two placed side by side at the front, and one perpendicular at the back. The left module (A) contains two bedrooms with doors opening into the right module (B), which is the living area with lounge and dining. The back module (C) contains a 3×3m bathroom and 3×3m kitchen. Overall footprint is 6m × 9m (54m²).
Entry is through the living module (B) from the front deck. The kitchen features a cooktop and sink — practical facilities for travellers rather than permanent living. Each bedroom accommodates a double bed with windows on the outer walls. The bathroom includes a shower, composting toilet, and vanity. Maximum height is 3.3m from underfloor to roof peak.
Module Configuration
Quantity: 6 units | Footprint: 6m × 9m | Area: 54m²
2-Bedroom Unit — 3 Barkly Modules
Studio Tourist Unit
The studio unit consists of a single Barkly 3×6m module for living and sleeping, with a 3×3m bathroom module at the back. The overall footprint is 3m × 9m (27m²). Ideal for solo travellers or couples.
The studio includes a queen bed, small kitchenette with basic facilities, table, and storage. The bathroom module features a shower, composting toilet, and vanity. A small front deck faces the ocean.
Module Configuration
Quantity: 6 units | Footprint: 3m × 9m | Area: 27m²
Studio Unit — 1 Barkly + 1 Bathroom Module
Floor Plans
Detailed floor plans showing module configurations, furniture layouts, and key dimensions. All units face north toward the ocean with front decks for outdoor seating.
2-Bedroom Unit — 6m × 9m
Three Barkly modules: Module A (left) contains 2 bedrooms with doors into Module B (right) which is the living/lounge/dining area with main entry. Module C perpendicular at rear (3×3 bathroom + 3×3 kitchen with cooktop, sink, and counter). GFRPU windows with external cyclone shutters. Max 3.3m underfloor to roof peak.
Studio Unit — 3m × 9m
One Barkly module (studio living with queen bed, kitchenette, table, and storage) plus one bathroom module at rear (shower, composting toilet, vanity). Compact and efficient for solo travellers or couples.
Village Site Layout
The 12 cabins are arranged in two rows facing the ocean, with the 2-bedroom units in the front row for premium ocean views and the studios in the second row. A central communal BBQ pavilion provides a gathering space, with reception and shared laundry facilities centrally located. Solar arrays and rainwater tanks are positioned at the rear of the site.
Front Row
6 × 2-bedroom units with premium ocean frontage, timber decks, and direct beach access via pathways.
Second Row
6 × studio units set among native vegetation, with filtered ocean views and quieter garden setting.
Central Facilities
Covered BBQ pavilion, reception/check-in, shared laundry, and gravel pathways connecting all areas.
Technical Specifications
All cabins share the same Barkly platform specifications, engineered for cyclone resilience and off-grid operation in remote coastal environments.
Structure & Construction
Off-Grid Services
Climate Resilience
Module Summary
| Unit Type | Quantity | Footprint | Barkly Modules | Bathroom | Kitchen |
|---|---|---|---|---|---|
| 2-Bedroom | 6 | 6m × 9m (54m²) | 3 × Barkly 3×6m | 3×3m (shower, compost toilet, vanity) | 3×3m (cooktop, sink, counter) |
| Studio | 6 | 3m × 9m (27m²) | 1 × Barkly 3×6m | 3×3m (shower, compost toilet, vanity) | Kitchenette in studio |
| Total | 12 cabins | 486m² total built area | 24 Barkly modules | 12 bathroom modules | — |
Concept Visualizations
Architectural concept renders showing the Barkly tourist cabins in a tropical beachfront setting. These visualizations demonstrate how the modular system creates an attractive, low-impact tourist accommodation village.
Aerial View — 12-Cabin Village Layout

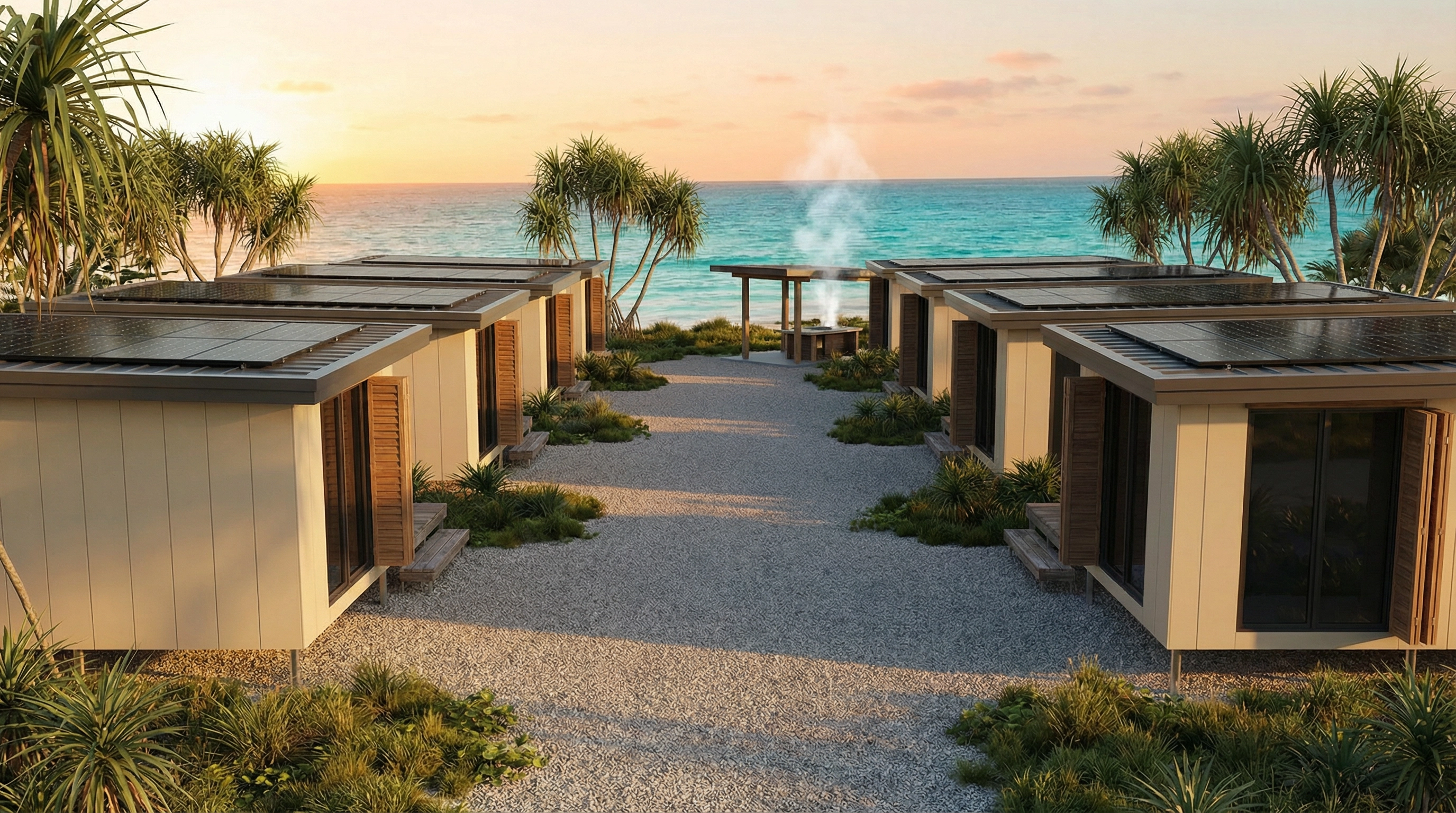

Village Pathway — Ocean Views Between Cabins

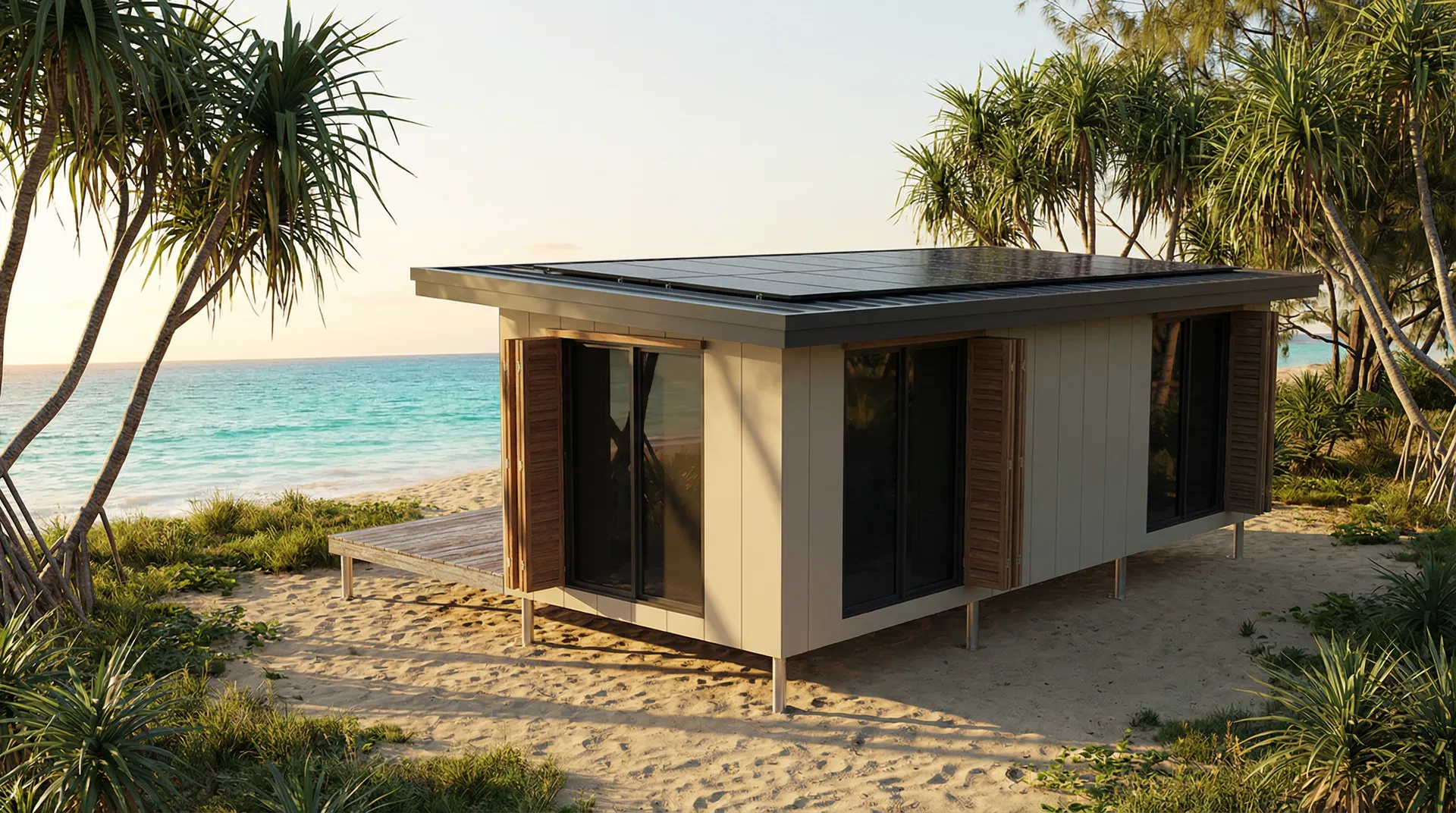

2-Bedroom Unit — Beachfront Setting

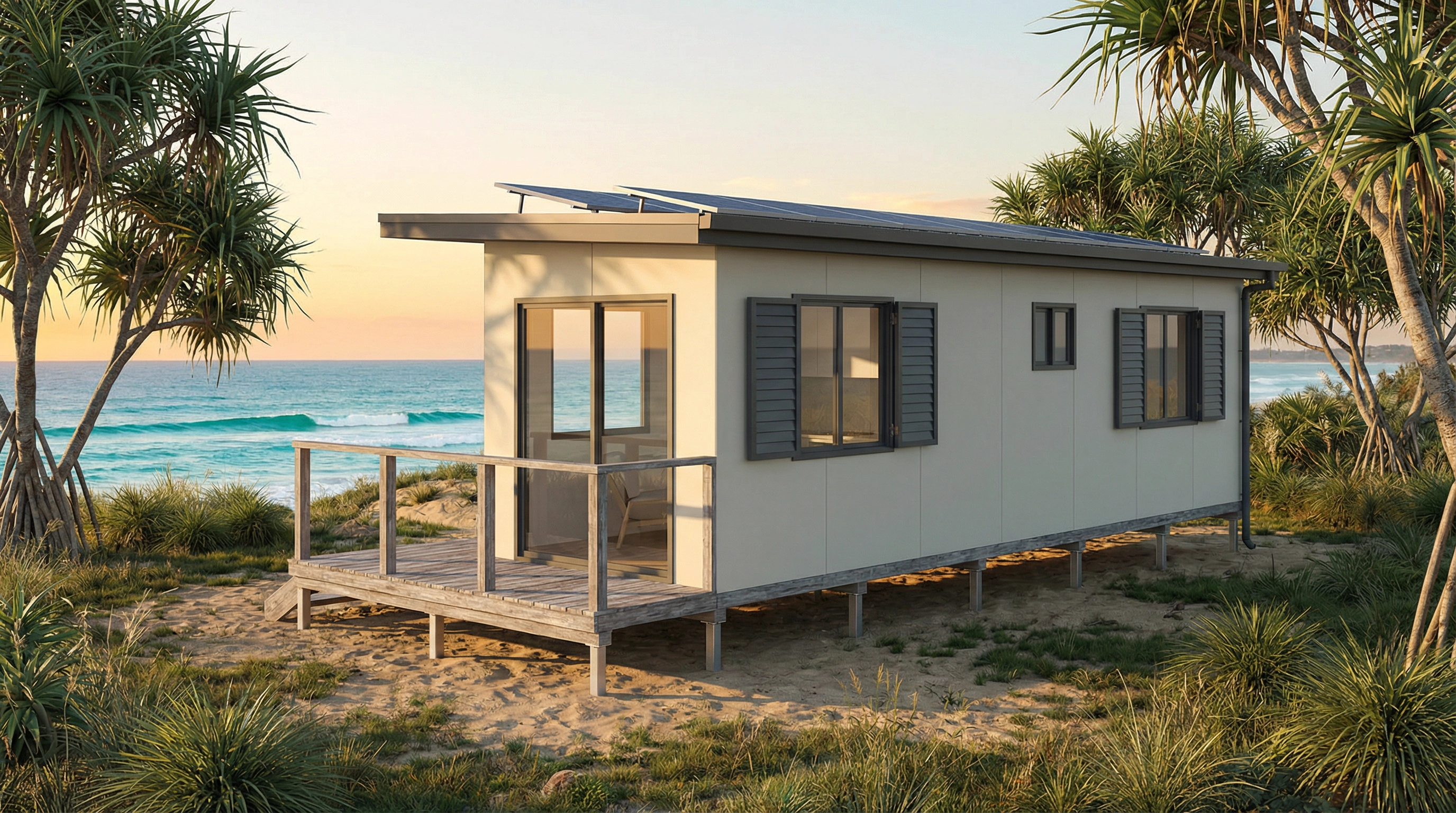

Studio Unit — Compact Tropical Retreat
Construction & Deployment Strategy
The Barkly system enables a practical construction approach that minimises on-site complexity while maximising quality control for pre-built components.
Bathroom Modules
Pre-built in Townsville or Cairns under factory conditions. Complete with shower, composting toilet, vanity, plumbing, and electrical. Quality controlled before transport to site.
Site Preparation
Stainless steel Mega Anchor footings hand-driven to refusal at each cabin location. Minimal ground disturbance — no concrete, no excavation. Solar arrays and rainwater tanks installed.
On-Site Assembly
Main Barkly modules assembled on-site using the steel framing and SIP panel system. Pre-built bathroom modules connected. GFRPU windows and cyclone shutters fitted. Decks and pathways completed.
Broader Opportunity
This concept demonstrates a scalable model for tourist accommodation in remote coastal locations across Northern Australia. There is an ongoing need for quality, resilient accommodation infrastructure in places such as Mornington Island, Weipa, and other Gulf and Cape communities where conventional construction is prohibitively expensive.
The Barkly system's off-grid capability, cyclone resilience, and rapid deployment make it well suited to these environments. The same modular approach can be adapted for community housing, ranger stations, research facilities, and eco-tourism developments across the region.
